After configure Active -Passive HA, we can see High Availability in Dashboard -> Widgets -> System -> High Availabilty.

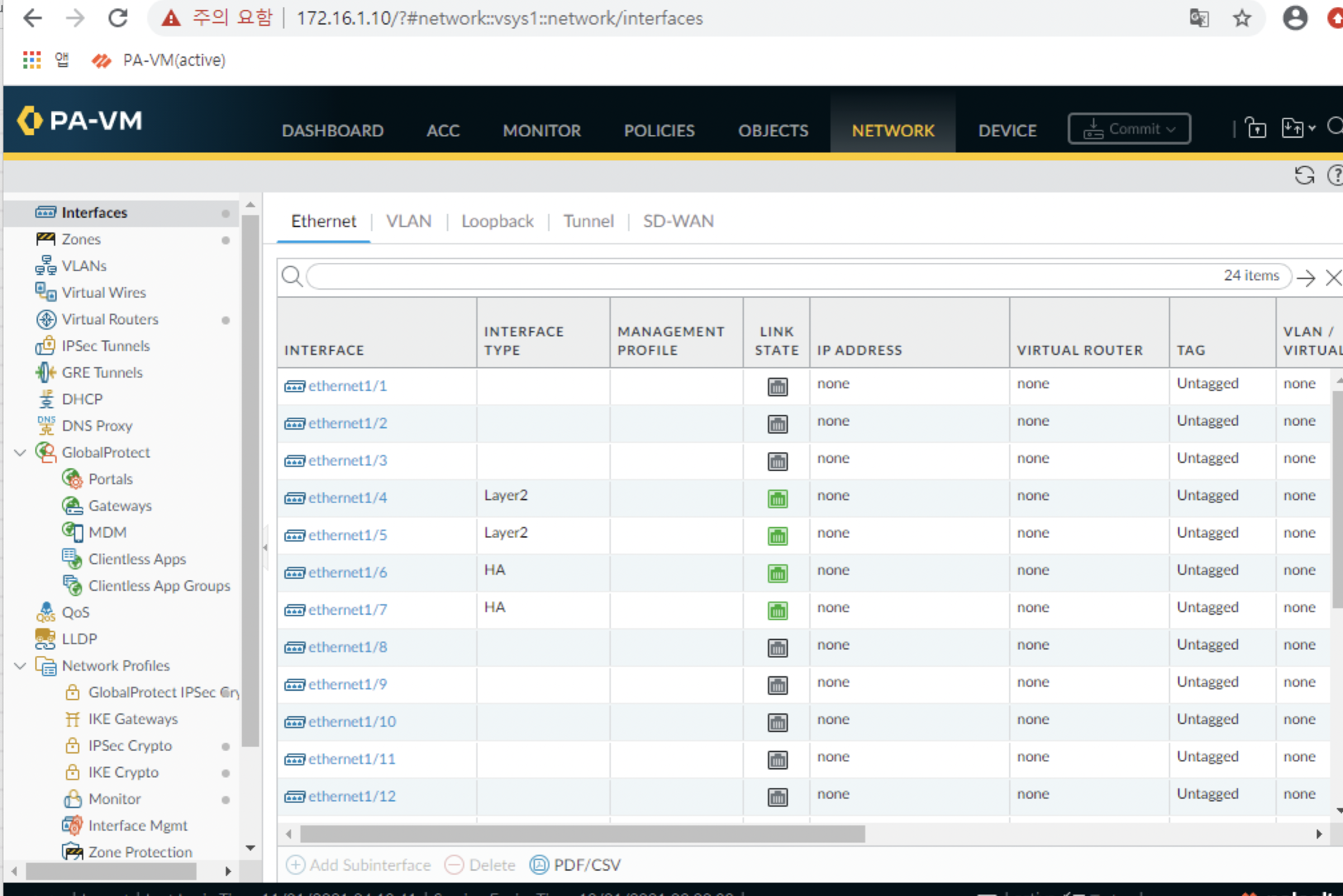

The below diagram, we set HA1 link both Eth1/6 and set HA2 Both eth 1/7.

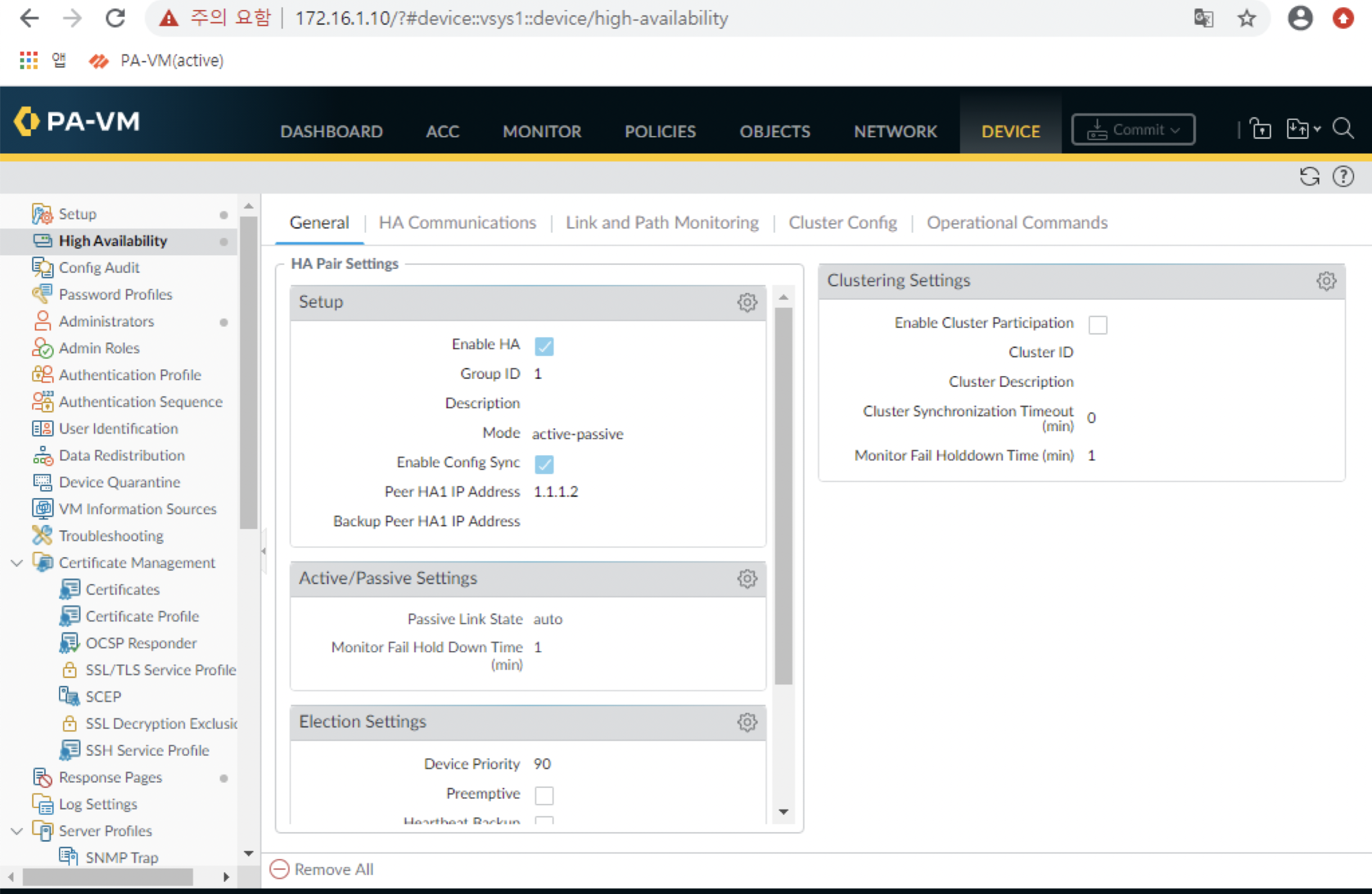

In Active device configuration, we configure enable HA and config sync

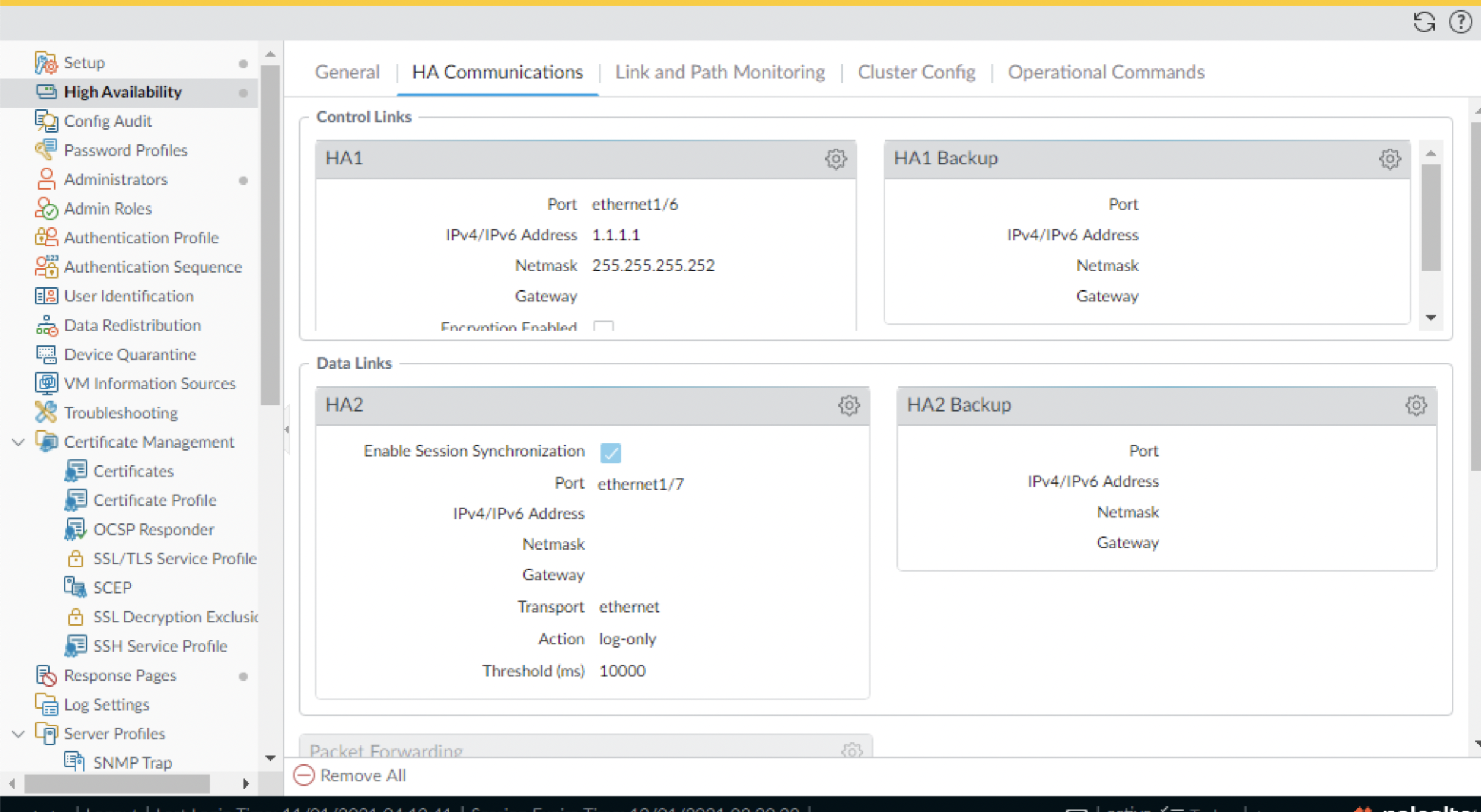

HA1 control link has a IP address as contron link. HA2 link can to have a IP address.
link monitoring 은 링크를 감지하다가 link fail 시 fail over함.
반면 Path monitoring은 특정 IP를 ICMP로 감지하다가 ICMP fail이 발생하면 fail over함.
